Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish

Merknaam:	M-CITY
Modelnummer:	MCT-AC-afdekking
MOQ:	50 eenheden
Prijs:	USD50-80 per unit
Betalingsvoorwaarden:	T/T
Leveringscapaciteit:	5000 eenheden per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Foshan, China

Certificering:

ISO9000

Materiaal:

Aluminiumlegering

Aluminium dikte:

1.5mm, 2.0mm, 2.5mm, 3.0mm

Oppervlaktebehandeling:

gepoedercoat, pvdf-verf, houtnerf

Kleur:

Alle RAL-kleuren, houtkorrels

Toepassingen:

Appartementen, hotels, commerciële gebouwen, woonwijken

E-mailadres voor contact:

mcityalu@163.com

Verwerking:

Snijden, CNC, buigen, schilderen, monteren, inspecteren, verpakken

Technologie:

geperforeerd, lasersnijden, CNC-revolverponsen, gesneden, gegraveerd

Trefwoorden:

deksel van de airconditionerunit

Verpakking Details:

Exportpakking, multiplexkisten, metalen koffers, beschermen film+ bubbelfilm

Levering vermogen:

5000 eenheden per maand

Productbeschrijving

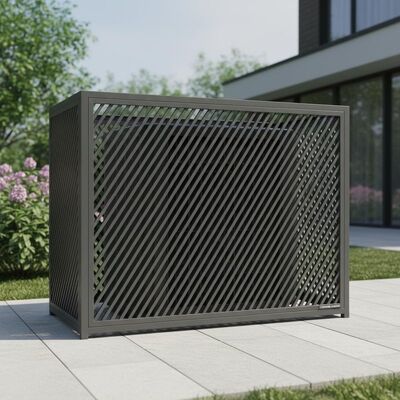

Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres

Premium Aluminum Architectural AC Enclosures

The Ultimate Solution for Modern Apartment Projects & High-Volume Wholesale

Elevate the exterior aesthetics of your architectural projects while providing superior protection for HVAC systems. Our precision-engineered aluminum air conditioner covers are designed to meet the rigorous standards of the European and Oceania markets.

Key Specifications & Advantages

High-Grade Material & Durability

Built to last in diverse climates—from the coastal salt air of Australia to the snowy winters of Europe.

Material: 100% Premium Aluminum Alloy (Non-rusting)
Surface Finish: AkzoNobel or PPG Outdoor Powder Coating
Weather Resistance: UV-resistant, corrosion-resistant, and fireproof (Class A)

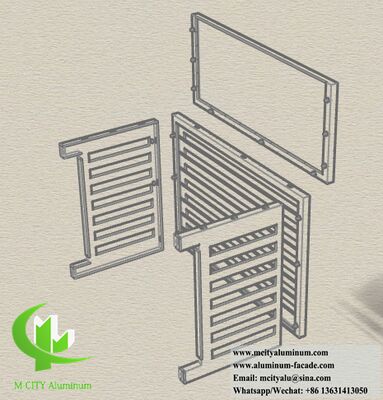

Modular "Easy-Fit" Design (Installation in Minutes)

We understand that labor costs are high in Europe and Australia. Our covers feature a tool-free/minimal-tool assembly system:

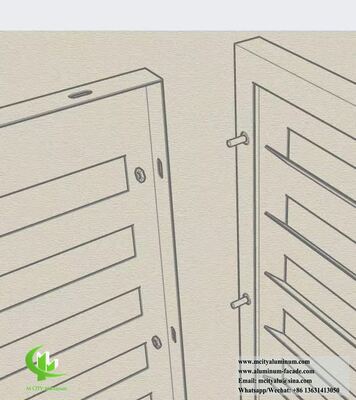

Pin-and-Slot Connection: As shown in the technical drawings, the panels use a sophisticated interlocking pin system
No Welding Required: Simple assembly on-site reduces labor time by 70%
Flat-Pack Shipping: Delivered in compact packaging to save on international freight and warehouse storage costs

Fully Customizable for Large-Scale Projects

Whether it's a high-rise apartment in Sydney or a residential complex in Berlin, we tailor every unit to your specs:

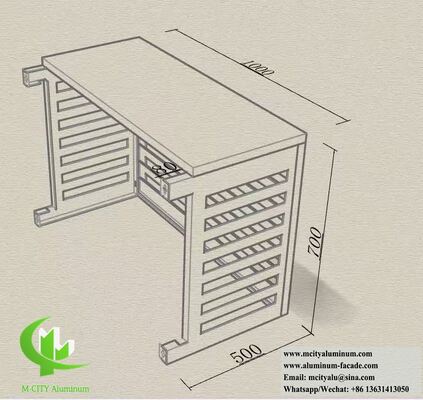

Custom Dimensions: Standard sizes (1000 × 700 × 500 mm) available, or custom-made to fit specific HVAC models
Mounting Options: Choose between Wall-Mounted (integrated bracket system) or Floor-Standing (stable base design)
Color Palette: Full range of RAL colors available to match any building facade

Optimized Airflow & Efficiency

The CNC-cut louvers are strategically angled to:

Ensure maximum ventilation for heat dissipation
Protect the AC unit from direct sunlight and debris
Provide sound dampening to reduce compressor noise

Technical Details

Feature	Specification
Material Thickness	1.5mm - 3.0mm (Customizable)
Standard Size	L1000 × H700 × W500 mm, customized
Assembly System	Modular Pin-Lock System (Screw-less appearance)
Color Options	RAL Colors (Anthracite Grey, Black, White, Timber Grain, etc.)
Application	Apartments, Hotels, Commercial Buildings, Residential Estates

Why Partner With Us?

With over 20 years of manufacturing expertise, we specialize in B2B supply for large-scale developments.

Project Ready: We provide full CAD/BIM support for architects
Compliance: Designed to meet European and AU/NZ building codes for safety and ventilation
Factory Direct: Competitive wholesale pricing with no middleman

Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish 4

Get a Project Quote Today

Contact our Technical Team:

mcityalu@sina.com
WhatsApp: 0086 13631413050
