Architectural 3D Geometric Aluminum Facade Cladding Panels | Custom PVDF Solid Metal Wall Cladding Manufacturer

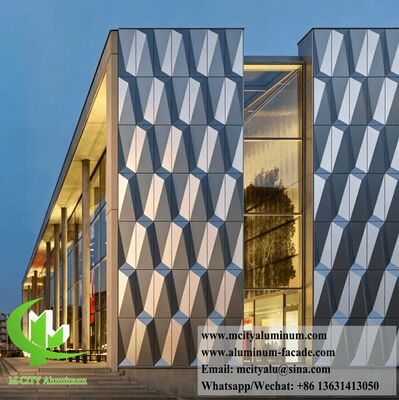

Elevate contemporary building design with our premium Architectural 3D Geometric Aluminum Facade Cladding Panels. Engineered for modern high-end architectural envelope systems, these dimensional metal solid panels create dynamic light-and-shadow effects that shift naturally throughout the day, imparting a striking, sculpted depth to commercial, institutional, and luxury residential exteriors.

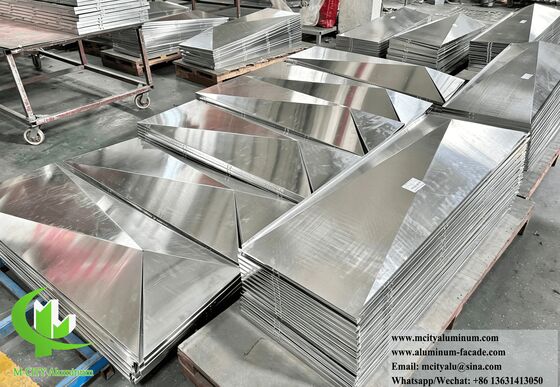

Manufactured from high-grade 3003-series aluminum alloy, our 3D cladding panels offer exceptional structural integrity and geometric precision. Each panel is precision-fabricated using advanced CNC cutting, multi-axis bending, and seamless welding technologies to ensure flawless alignment across complex multi-faceted surfaces. Coated with industry-leading PVDF (Fluorocarbon) finishes, these panels deliver unmatched weatherability, UV resistance, and corrosion protection, making them ideal for coastal environments and extreme climates.

• Product Name: Architectural 3D Aluminum Facade / Geometric Metal Cladding Panel

• Base Material: Premium Aluminum Alloy 3003-H14 / 1100-H14

• Material Thickness: 2.0mm, 2.5mm, 3.0mm, 4.0mm (Custom thickness available upon request)

• Surface Treatment: PVDF (Fluorocarbon Coating), Powder Coating, Anodized

• Coating Brands: AkzoNobel, PPG, Tiger, Kynar 500 (Min. 70% resin content)

• Geometric Variations: Pyramidal, Diamond, Multi-faceted Origami, Asymmetric 3D Shapes, Custom Perforation Patterns

• Standard Panel Size: 1220 x 2440mm (Max width up to 2000mm, max length up to 6000mm)

• Application Scope: Exterior Curtain Walls, Building Facades, Column Covers, Feature Ceilings, Sun Shading Screens

• Dynamic 3D Aesthetics: The multi-faceted geometric design breaks away from conventional flat walls, providing architects with unlimited creative freedom to design landmark structures.

• Superior Durability (PVDF Finish): Our triple-coat PVDF spraying process guarantees 15–20 years of color retention and finish longevity against harsh UV radiation, acid rain, and industrial pollution.

• Fully Customizable Fabrication: Utilizing advanced CNC engraving and bending centers, we produce custom-tailored dimensions, unique angular depths, and integrated gradient perforation patterns according to BIM 3D models and shop drawings.

• Structural Efficiency: Light in weight compared to stone or steel cladding, our aluminum solid panels significantly reduce the dead load of the building structure while simplifying sub-frame installation.

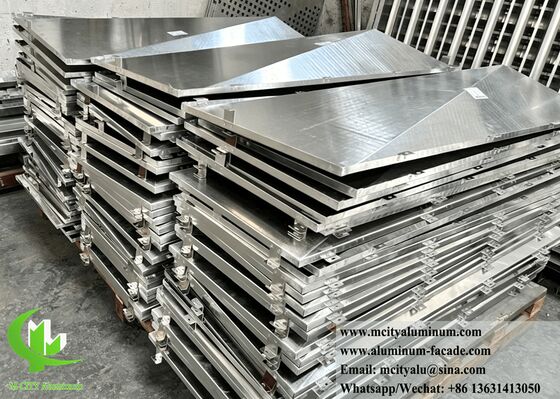

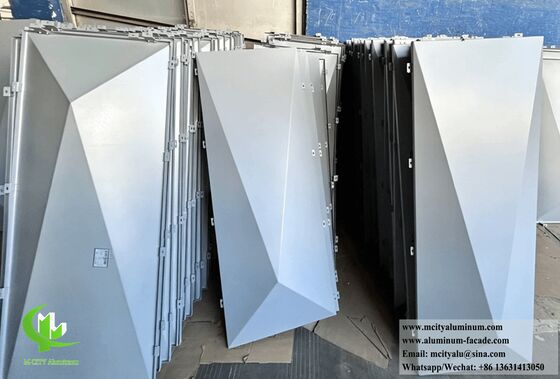

• Robust Engineered Systems: Available with hook-on, cassette, or interlocking installation options, complete with pre-engineered stiffeners and fixing brackets to withstand severe wind loads.

Q1: What are the advantages of using 3003 alloy over 1100 alloy for 3D facade panels?

A: The 3003 alloy contains manganese, which gives it significantly higher tensile strength and yield strength compared to the purer 1100 alloy. For 3D dimensional panels that undergo deep multi-angle bending, 3003 provides the structural stiffness needed to prevent oil-canning and maintain crisp, unyielding geometric edges under high wind pressures.

Q2: Can these 3D aluminum panels be combined with acoustic or insulation materials?

 A: Yes, absolutely. Our custom fabrication includes the option to integrate acoustic non-woven tissues, rock wool insulation layers, or vapor barriers on the backside of the panel system, transforming the aesthetic facade into a high-performance thermal and acoustic building envelope.

Q3: Do you support design integration from architectural CAD or BIM models?

A: Yes. As a professional architectural aluminum manufacturer with 20 years of export experience, our engineering team directly reviews and converts AutoCAD files, Revit/BIM models, and SolidWorks shop drawings into precise production blueprints to guarantee seamless on-site fitment.

Any patterns/design can be made, you can provide us the drawing or picture.

CNC cutting machine

In order to meet the individual requirements of each customer, you can select the pattern in the renderings directly, you can also choose the patterns of your favorite pattern customization, our target is to customize the best products for each customer. Aluminum Hollow panel can be adjusted size, not a simple zoom, but according to customer size adjustment design elements. But our standard size is 1200x2400mm, if bigger than this size should be combinated.
